CNC G-Code Generation
Maintain machining methods, G-code lines and expressions, process stages, and production processes — then generate CNC programs from machining orders.
Overview
CNC G-Code Generation is the engineering workspace for automated machine programs. Counts on the dashboard reflect machining methods (G-code file templates), conditional G-code line blocks, process stages, and production process definitions.
Manufacturing engineers maintain setup here, then generate code on machining orders when templates are complete. Recent items surface the latest methods, stages, and processes for quick edits.
Key Capabilities
Machining methods
G-code file templates with conditional line logic.
G-code expressions
Rules that drive which lines emit for each scenario.
Process stages
Group production processes for machining sequences.
Production processes
Operation definitions linked to stages and methods.
Code generation
Produce CNC programs from machining order context.
Setup reports
Summaries to audit CNC configuration completeness.
Interface Showcase

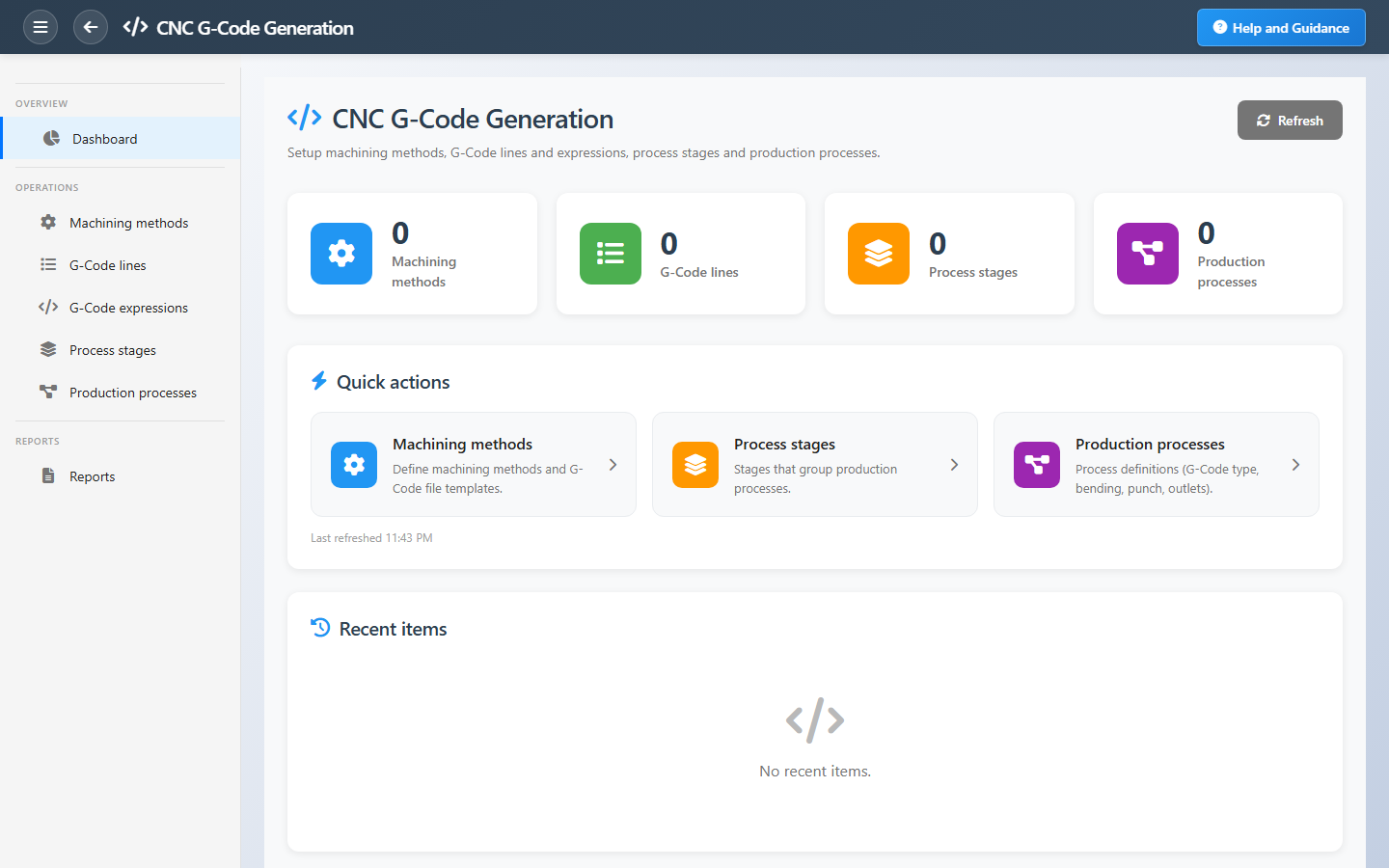

Setup counts for methods, lines, stages, and processes with recent edits.
Connected Modules
Machining Orders
Orders that consume generated G-code.
Advanced Setup
Dimensions and formulas for complex parts.
Production Control
Shop-floor execution context.
Ready to automate CNC output?
Complete machining methods and process definitions before generating code so every run uses validated templates.
